Hero HF-Dawn 20132013 Hero HF-Dawn specifications, pictures, reviews and rating |

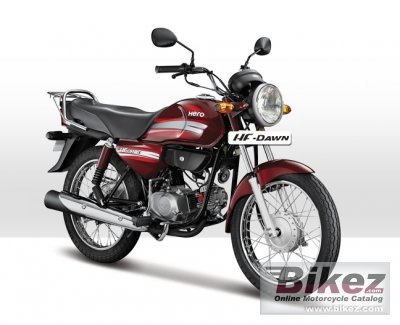

2013 Hero HF-Dawn. Image credits - Hero.
| Hero's profilation of this bike |
| Stylish Meter Console. Enjoy a tension free ride with the new improved engine. Improved visibility that promises you safe ride at night. |
| General information | |
|---|---|
| Model name | Hero HF-Dawn |
| Model year | 2013 |
| Category | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 97.2 ccm (5.93 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 7.8 HP (5.7 kW)) @ 7500 RPM |
| Torque | 8.0 Nm (0.8 kgf-m or 5.9 ft.lbs) @ 4500 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 50.0 x 49.5 mm (2.0 x 1.9 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Ignition | DC-CDI |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multiplate. |
| Driveline | Constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular double cradle |
| Front suspension | Telescopic hydraulic shock absorber |
| Rear suspension | Swing arm with two adjustable hydraulic shock absorber |
| Front tire | 2.75-18 |
| Rear tire | 2.75-18 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Wheels | 5-spoke wheels |
| Seat | Wide, 2-person seat |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 109.0 kg (240.3 pounds) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall length | 1965 mm (77.4 inches) |
| Overall width | 720 mm (28.3 inches) |
| Ground clearance | 165 mm (6.5 inches) |
| Wheelbase | 1235 mm (48.6 inches) |
| Fuel capacity | 10.50 litres (2.77 US gallons) |
| Reserve fuel capacity | 1.50 litres (0.40 US gallons) |
| Other specifications | |
| Color options | Black, white, red, orange, blue |
| Starter | Kick |
| Electrical | 2.5 Ah battery |
| Light | 35W/35W headlights |
| Comments | Made in India. Brand previously called Hero Honda. |
