| Hero's profilation of this bike |
| A new engine for better performance.
Powerful headlight provides much improved visibility.
|
|
General information |
|
Model
|

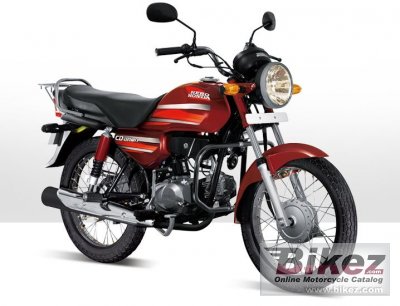

Hero CD-Dawn |
|
Model year
|
2012 |
|
Category
|
Sport |
|
Rating
|
3.0 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
97.2 ccm (5.93 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
7.8 HP (5.7 kW)) @ 7500 RPM |
|
Torque
|
8.0 Nm (0.8 kgf-m or 5.9 ft.lbs) @ 4500 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
50.0 x 49.5 mm (2.0 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
DC-CDI |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiplate. |
|
Driveline
|
Constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular double cradle |
|
Front suspension
|
Telescopic hydraulic shock absorber |
|
Rear suspension
|
Swing arm with two adjustable hydraulic shock absorber |
|
Front tire
|
2.75-18 |
|
Rear tire
|
2.75-18 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Wheels
|
5-spoke wheels |
|
Seat
|
Wide, 2-person seat |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
107.0 kg (235.9 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall length
|
1965 mm (77.4 inches) |
|
Overall width
|
720 mm (28.3 inches) |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
1235 mm (48.6 inches) |
|
Fuel capacity
|
10.50 litres (2.77 US gallons) |
|
Reserve fuel capacity
|
1.80 litres (0.48 US gallons) |
|
Other specifications |
|
Color options
|
Black, white, red, burgundy |
|
Starter
|
Kick |
|
Electrical
|
2.5 Ah battery |
|
Light
|
35W/35W headlights |
|
Comments
|
Sold in India. Brand previously called Hero Honda. |
