| Hero's profilation of this bike |
| New digital – Analog combo meter console. All secure ignition switch with key shutter.
|
|
General information |
|

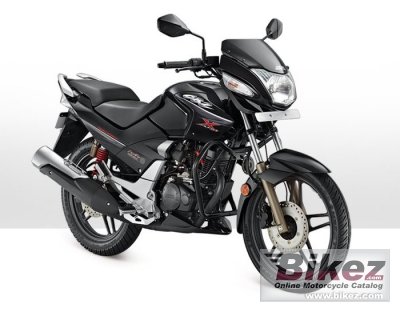

Motorcycle name
|
Hero CBZ Xtreme |
|
Year of manufacture
|
2012 |
|
Type
|
Sport |
|
Rating
|
2.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
149.2 ccm (9.10 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
10.6 HP (7.7 kW)) @ 8500 RPM |
|
Torque
|
12.8 Nm (1.3 kgf-m or 9.4 ft.lbs) @ 6500 RPM |
|
Compression
|
9.1:1 |
|
Bore x stroke
|
57.3 x 57.8 mm (2.3 x 2.3 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
AMI - Advanced Microprocessor Ignition System |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate, wet |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular, diamond type |
|
Front suspension
|
Telescopic Hydraulic Fork |
|
Rear suspension
|
Rectuglar swing arm with 5 step adjustab gas reservior suspension |
|
Front tire
|
80/100-18 |
|
Rear tire
|
100/90-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Expanding brake (drum brake). Optional disk |
|
Diameter
|
130 mm (5.1 inches) |
|
Seat
|
2-person seat |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
148.0 kg (326.3 pounds) |
|
Overall height
|
1145 mm (45.1 inches) |
|
Overall length
|
2080 mm (81.9 inches) |
|
Overall width
|
765 mm (30.1 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1325 mm (52.2 inches) |
|
Fuel capacity
|
12.10 litres (3.20 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Other specifications |
|
Color options
|
Red, orange, silver, gray, black |
|
Starter
|
Electric |
|
Electrical
|
12V 7Ah battery |
|
Light
|
12 V -35 WI 35W - Halogen bulb – Trapeze Headlight |
|
Comments
|
Sold in India. Brand previously called Hero Honda. |
