| General information |
|---|

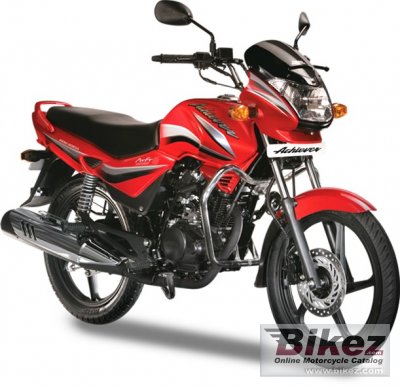

| Model: | Hero Achiever |
| Year: | 2013 |
| Category: | Sport |
| Rating: | 68.8 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 149.20 ccm (9.10 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 13.41 HP (9.8 kW)) @ 8000 RPM |
| Torque: | 12.80 Nm (1.3 kgf-m or 9.4 ft.lbs) @ 5000 RPM |
| Compression: | 9.1:1 |
| Bore x stroke: | 57.3 x 57.8 mm (2.3 x 2.3 inches) |
| Fuel system: | Carburettor. CV type |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | AMI – Advanced Microprocessor Ignition System |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel, diamond type |
| Front suspension: | Telescopic Hydraulic Fork |
| Rear suspension: | Rectangular swing arm with adjustable hydraulic shock absorber |
| Front tyre: | 2.75-18 |
| Rear tyre: | 3.00-18 |
| Front brakes: | Single disc. Non-asbestose |
| Front brakes diameter: | 240 mm (9.4 inches) |
| Rear brakes: | Expanding brake (drum brake). Non-asbestose |
| Rear brakes diameter: | 130 mm (5.1 inches) |
| Wheels: | Alloy wheels. Black rims. |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 138.0 kg (304.2 pounds) |
| Overall height: | 1,120 mm (44.1 inches) |
| Overall length: | 2,040 mm (80.3 inches) |
| Overall width: | 760 mm (29.9 inches) |
| Ground clearance: | 160 mm (6.3 inches) |
| Wheelbase: | 1,290 mm (50.8 inches) |
| Fuel capacity: | 12.30 litres (3.25 gallons) |
| Reserve fuel capacity: | 2.30 litres (0.61 gallons) |
| Other specifications |
|---|
| Color options: | Red, black/purple, black/blue, silver, blue |
| Starter: | Electric & kick |
| Electrical: | 12V-2.5 Ah (Kickstarter) / 7 Ah (Selfstarter) |
| Comments: | Sold in India. Brand previously called Hero Honda. |
