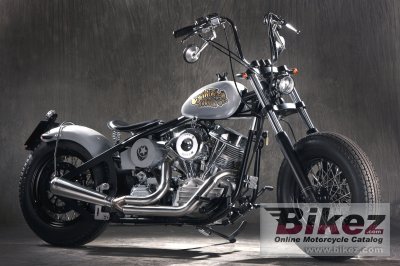

| Headbanger's profilation of this bike |
| I love the Woodstock Boogie and who knows me is aware of the reason, no need to explain. I’ve always known it, even before meeting it I knew the unmistakable sound of its 93 cu.in. (1,530 cc) pan S and S. |
|
General information |
|
Motorcycle name
|
Headbanger Woodstock Boogie |
|
Year of manufacture
|
2013 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1530.0 ccm (93.36 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
S and S engine |
|
Fuel system
|
Carburettor |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry Multiple Disc mechanical lever operated |
|
Driveline
|
Belt 3 inch. |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
2 in 1 Headbanger |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
HB Hardtail or HB Softail frame |
|
Rake (fork angle)
|
34.0° |
|
Front suspension
|
Springer with shock absorber |
|
Front tire
|
90/90-19 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Single disc. HB Beringer caliper |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. HB Beringer caliper |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
233.0 kg (513.7 pounds) |
|
Seat height
|
600 mm (23.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2300 mm (90.6 inches) |
|
Wheelbase
|
1640 mm (64.6 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Other specifications |
|
Color options
|
Silk and Black Mat, Embossed and Raw Metal, or custom color |
|
Starter
|
Electric |
|
Electrical
|
12 V |
|
Comments
|
US made. |
