Headbanger Woodstock Boogie 20122012 Headbanger Woodstock Boogie specifications, pictures, reviews and rating |

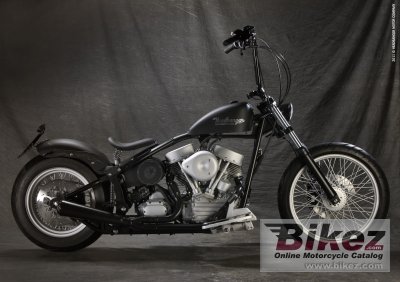

2012 Headbanger Woodstock Boogie. Image credits - Headbanger.
| Headbanger's profilation of this bike |
| WOODSTOCK BOOGIE is the way back to simplicity, for an amazing journey around time and space, accompanied by the pure sound of an electric guitar solo. |
| General information | |
|---|---|
| Motorcycle name | Headbanger Woodstock Boogie |
| Year model | 2012 |
| Type | Custom / cruiser |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1530.0 ccm (93.36 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | S and S 93 cu. in. |
| Fuel system | Carburettor |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Dry Multiple Disc mechanical lever operated |
| Driveline | Belt 3 inch. |
| Emission details | Euro 3 |
| Exhaust system | 2 in 1 Headbanger |
| Chassis, suspension, brakes and wheels | |
| Frame type | HB Softail |
| Rake (fork angle) | 34.0° |
| Front suspension | Springer with shock absorber |
| Front tire | 120/70-21 |
| Rear tire | 180/70-16 |
| Front brakes | Single disc. 2-piston caliper |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. 4-piston caliper |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 234.0 kg (515.9 pounds) |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall length | 2300 mm (90.6 inches) |
| Wheelbase | 1640 mm (64.6 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Other specifications | |
| Color options | Silk and Black Mat, Embossed and Raw Metal, or custom clor |
| Starter | Electric |
| Electrical | 12 V |
| Update specs | Report missing specs or required updates. |
