| Headbanger's profilation of this bike |

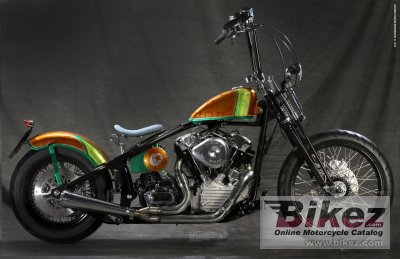

| SUMMERTIME is a true psychedelic trip, the Headbanger proposal to try a real multicolour experience on two wheels: softail frame, a front 19’’ wheel and a rear 130 tyre (what a thrill, the narrow wheels bike are now back!), “high-neck” fuel tank, t-bar and a small sissybar. |
|
General information |
|
Model name
|
Headbanger Summertime |
|
Model year
|
2012 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1530.0 ccm (93.36 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
S and S 93 cu. in. |
|
Fuel system
|
Carburettor |
|
Ignition
|
Alternator/Generator |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry Multiple Disc mechanical lever operated |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
2 in 1 Headbanger |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
HB Softail |
|
Rake (fork angle)
|
34.0° |
|
Front suspension
|
Telescopic fork, and #8709; 41 mm |
|
Front tire
|
100/70-19 |
|
Rear tire
|
130/70-16 |
|
Front brakes
|
Single disc. 4-piston caliper |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. 4-piston caliper |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
235.0 kg (518.1 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2260 mm (89.0 inches) |
|
Wheelbase
|
1600 mm (63.0 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Color options
|
Multicolored |
|
Starter
|
Electric |
|
Electrical
|
12 V |
