| Headbanger's profilation of this bike |

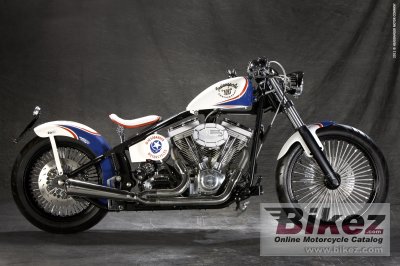

| HIGH FLYIN’, the most zippy and angry of the range, is the Headbanger’s 70s muscle bike. Small and light with a ‘rocket’ engine, for people looking for strong emotions. This bike is ready to take off from the ´Christmas Tree´ in a dragster race on the strip. |
|
General information |
|
Model name
|
Headbanger High Flyin |
|
Year model
|
2012 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1983.0 ccm (121.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
T.P. 121 88 engine |
|
Fuel system
|
Carburettor |
|
Ignition
|
Electronic |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry Multiple Disc mechanical lever operated |
|
Driveline
|
Primary drive: BDL belt 3 inches. Final: Chain. |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
2 in 1 Headbanger or 2 in 2 Headbanger |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
HB Softail |
|
Rake (fork angle)
|
34.0° |
|
Front suspension
|
41 mm Telescopic fork |
|
Rear suspension
|
Optional progressive suspension |
|
Front tire
|
120/70-16 |
|
Rear tire
|
180/70-16 |
|
Front brakes
|
Single disc. P.M. 4 piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. P.M. 4 piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Wheels
|
Front wheel: 21” big spoke. Rear wheel: 18” big spoke. |
|
Physical measures and capacities |
|
Dry weight
|
230.0 kg (507.1 pounds) |
|
Overall length
|
2225 mm (87.6 inches) |
|
Overall width
|
1778 mm (70.0 inches) |
|
Wheelbase
|
1595 mm (62.8 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Color options
|
Any color |
|
Starter
|
Electric |
|
Comments
|
Customizable.
|
