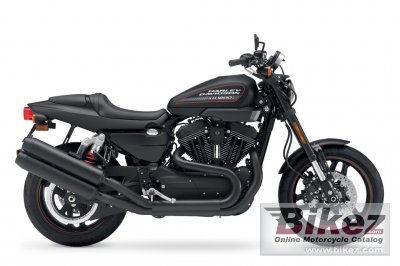

Harley-Davidson XR1200X 20122012 Harley-Davidson XR1200X specifications, pictures, reviews and rating |
| Harley-Davidson's profilation of this bike |
| The agile XR1200X motorcycle is draped in a satin black finish for a menacing look. From the black powder-coated engine and straight-shot, high-performance exhaust to the upside-down forks, and the black cast aluminum wheels with orange rim highlight that jet the bike into a whole new era of race-inspired motorcycles—the XR1200X embraces the dark side while paying homage to the old school flat tracker that inspired its style and ease of handling. |
| General information | |
|---|---|
| Model | Harley-Davidson XR1200X |
| Year of manufacture | 2012 |
| Type | Custom / cruiser |
| Price as new | US$ 11799. Euro 11990. UK £ 9599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1201.3 ccm (73.30 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Air-cooled, Evolution® |
| Torque | 100.2 Nm (10.2 kgf-m or 73.9 ft.lbs) @ 4000 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication system | Dry-sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary drive chain, 57/38 ratio. Final Drive Belt, 68/28 ratio |
| Fuel consumption | 5.35 litres/100 km (18.7 km/l or 43.97 mpg) |
| Greenhouse gases | 124.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Black, upswept, straight-shot high-performance exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel tubular frame; circular sections; cast junctions |
| Rake (fork angle) | 28.9° |
| Trail | 132 mm (5.2 inches) |
| Front suspension | 39 mm |
| Front wheel travel | 92 mm (3.6 inches) |
| Rear suspension | Mild steel, rectangular tube section, stamped junctions, MIG welded swing-arm. Coil-over; preload dual-adjustable shocks. |
| Rear wheel travel | 41 mm (1.6 inches) |
| Front tire | 120/70-ZR18 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc. Dual-piston |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Single-piston |
| Diameter | 260 mm (10.2 inches) |
| Wheels | Black, 3-Spoke Cast Aluminum |
| Physical measures and capacities | |
| Dry weight | 249.9 kg (551.0 pounds) |
| Weight incl. oil, gas, etc | 259.9 kg (573.0 pounds) |
| Seat height | 742 mm (29.2 inches) If adjustable, lowest setting. |
| Overall length | 2225 mm (87.6 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1524 mm (60.0 inches) |
| Fuel capacity | 13.25 litres (3.50 US gallons) |
| Oil capacity | 2.60 litres (2.75 US quarts) |
| Other specifications | |
| Color options | Black Denim, White Hot Denim |
| Starter | Electric |
| Instruments | Uniquely-styled, handlebar-mounted, compact digital speedometer and large, analog tachometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout |
| Electrical | Sealed lead acid battery, maintenance-free, 12V, 12 amp/hour, 200 cca. |
| Factory warranty | 24 months, unlimited mileage. |
