General information |
|
Model
|

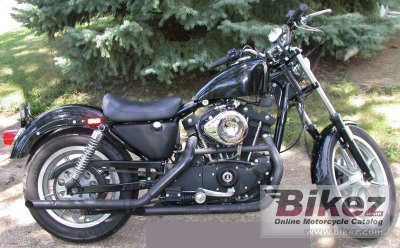

Harley-Davidson XLX 1000-61 |
|
Year of manufacture
|
1984 |
|
Type
|
Classic |
|
Rating
|
3.4 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
997.0 ccm (60.84 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
50.0 HP (36.5 kW)) @ 6000 RPM |
|
Torque
|
55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 4000 RPM |
|
Top speed
|
159.0 km/h (98.8 mph) |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
81.0 x 96.8 mm (3.2 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Keihin |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Transistorized |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Fuel consumption
|
4.70 litres/100 km (21.3 km/l or 50.05 mpg) |
|
Greenhouse gases
|
109.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic forks |
|
Rear suspension
|
Dual shocks, swinging arm |
|
Front tire
|
MJ90-19 |
|
Rear tire
|
MT90-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
244.0 kg (537.9 pounds) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Oil filter
|
ProFilter PF-170B |
|
Battery
|
YTX20-BS |
|
Spark plugs
|
RL82YC |
|
Chain size
|
530 |
|
Chain links
|
110 |
|
Sprockets
|
21/51 (front/rear) |
|
Fork tube size
|
35 mm (1.4 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
