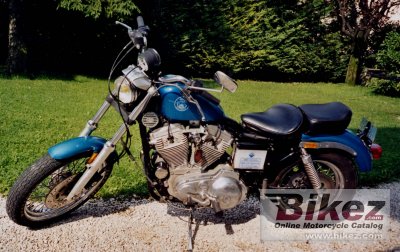

1990 Harley-Davidson XLH Sportster 883 Standard. Picture submitted by anonymous user..
Submit more pictures.
|
|
|
General information |
|
Model
|
Harley-Davidson XLH Sportster 883 Standard |
|
Year
|
1990 |
|
Category
|
Sport |
|
Rating
|
3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
883.0 ccm (53.88 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
48.0 HP (35.0 kW)) @ 6000 RPM |
|
Top speed
|
149.0 km/h (92.6 mph) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
MJ 90-19 |
|
Rear tire
|
MT 90-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
222.0 kg (489.4 pounds) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
