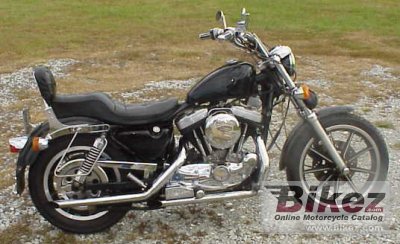

1992 Harley-Davidson XLH Sportster 1200. Picture submitted by anonymous user..
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Harley-Davidson XLH Sportster 1200 |
|
Model year
|
1992 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1198.0 ccm (73.10 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
49.0 HP (35.8 kW)) @ 5200 RPM |
|
Torque
|
84.0 Nm (8.6 kgf-m or 62.0 ft.lbs) @ 3500 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
88.8 x 96.8 mm (3.5 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Single 40mm CV Keihin semi-flat slide |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Digital CDI |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle steel, box section steel swingarm. |
|
Front suspension
|
39mm Telescopic forks |
|
Front wheel travel
|
175 mm (6.9 inches) |
|
Rear suspension
|
Dual shocks, preload adjustable |
|
Rear wheel travel
|
91 mm (3.6 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Single-piston caliper. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
226.0 kg (498.2 pounds) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
