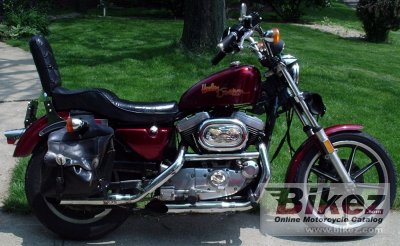

1987 Harley-Davidson XLH Sportster 1100 Evolution. Picture credits - Ken McClaine.
Submit more pictures.
|
|
|
General information |
|
Model name
|
Harley-Davidson XLH Sportster 1100 Evolution |
|
Year model
|
1987 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1101.0 ccm (67.18 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
50.0 HP (36.5 kW)) @ 5500 RPM |
|
Top speed
|
164.0 km/h (101.9 mph) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
85.1 x 96.8 mm (3.4 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
MJ 90-19 |
|
Rear tire
|
MT 90-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
222.0 kg (489.4 pounds) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 87 Harley-Davidson XLH Sportster 1100 Evolution discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Fun-factor for the 1987 Harley-Davidson XLH Sportster 1100 Evolution:
 (74.4 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
