Harley-Davidson XLH Sportster 1100 Evolution 19861986 Harley-Davidson XLH Sportster 1100 Evolution specifications, pictures, reviews and rating |

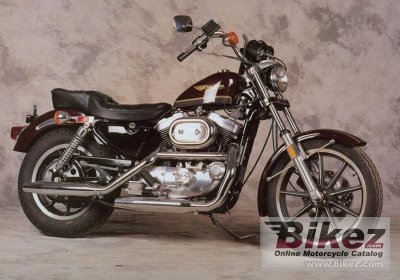

1986 Harley-Davidson XLH Sportster 1100 Evolution. Picture submitted by anonymous user.. Submit more pictures.
| General information | |
|---|---|
| Model | Harley-Davidson XLH Sportster 1100 Evolution |
| Year | 1986 |
| Category | Custom / cruiser |
| Rating | 3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1101.0 ccm (67.18 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 50.0 HP (36.5 kW)) @ 5500 RPM |
| Top speed | 164.0 km/h (101.9 mph) |
| Compression | 9.0:1 |
| Bore x stroke | 85.1 x 96.8 mm (3.4 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | MJ 90-19 |
| Rear tire | MT 90-16 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 222.0 kg (489.4 pounds) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Other specifications | |
