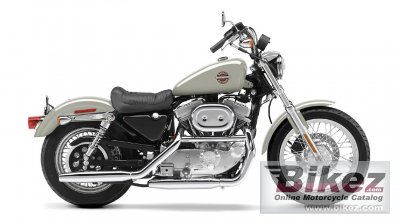

2002 Harley-Davidson XLH 883 Sportster 883 Hugger. Picture by Harley-Davidson. Published with permission..
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Harley-Davidson XLH 883 Sportster 883 Hugger |
|
Year
|
2002 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
883.0 ccm (53.88 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
67.0 Nm (6.8 kgf-m or 49.4 ft.lbs) @ 4400 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
235.0 kg (518.1 pounds) |
|
Seat height
|
688 mm (27.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2230 mm (87.8 inches) |
|
Ground clearance
|
119 mm (4.7 inches) |
|
Wheelbase
|
1505 mm (59.3 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Reserve fuel capacity
|
1.90 litres (0.50 US gallons) |
|
Other specifications |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Harley-Davidson XLH 883 Sportster 883 Hugger discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Touring capabilities for the 2002 Harley-Davidson XLH 883 Sportster 883 Hugger:
 (61.6 out of 100)
