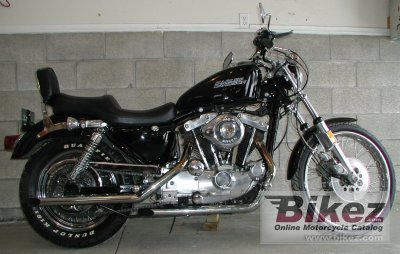

1984 Harley-Davidson XLH 1000 Sportster. Picture submitted by anonymous user..
Submit more pictures.
|
|
|
General information |
|
Model name
|
Harley-Davidson XLH 1000 Sportster |
|
Model year
|
1984 |
|
Category
|
Sport touring |
|
Rating
|
3.0 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
997.0 ccm (60.84 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
50.0 HP (36.5 kW)) @ 6000 RPM |
|
Top speed
|
170.0 km/h (105.6 mph) |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
81.0 x 96.8 mm (3.2 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
MJ 90-19 |
|
Rear tire
|
MT 90-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
246.0 kg (542.3 pounds) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
