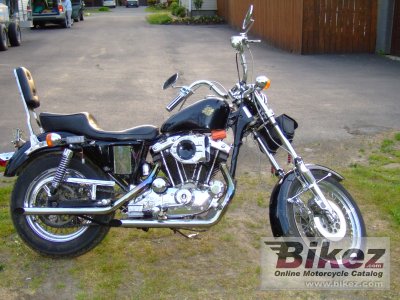

Harley-Davidson XLH 1000 Sportster 19801980 Harley-Davidson XLH 1000 Sportster specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson XLH 1000 Sportster |
| Model year | 1980 |
| Category | Sport |
| Rating | 3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 997.0 ccm (60.84 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 55.0 HP (40.1 kW)) @ 5800 RPM |
| Top speed | 180.0 km/h (111.8 mph) |
| Compression | 9.0:1 |
| Bore x stroke | 81.0 x 96.8 mm (3.2 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Electronic |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 35mm Showa tubs diameter |
| Front wheel travel | 193 mm (7.6 inches) |
| Rear suspension | Dual Showa shocks spring preload adjustable, 76mm wheel travel. |
| Front tire | 3.75-19 |
| Rear tire | 4.25-16 |
| Front brakes | Single disc |
| Diameter | 285 mm (11.2 inches) |
| Rear brakes | Single disc |
| Diameter | 285 mm (11.2 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 240.0 kg (529.1 pounds) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 80 Harley-Davidson XLH 1000 Sportster discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 1980 Harley-Davidson XLH 1000 Sportster or advertise any other MC for sale. You can list all 1980 Harley-Davidson XLH 1000 Sportster available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this Harley-Davidson bike | |
Reliability for the 1980 Harley-Davidson XLH 1000 Sportster:  (63.9 out of 100)Click here for complete rating. |
|
