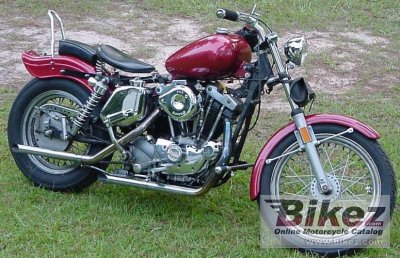

Harley-Davidson XLH 1000 Sportster 19761976 Harley-Davidson XLH 1000 Sportster specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Harley-Davidson XLH 1000 Sportster |
| Year | 1976 |
| Category | Scooter |
| Rating | 3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 997.0 ccm (60.84 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 57.0 HP (41.6 kW)) @ 6000 RPM |
| Top speed | 180.0 km/h (111.8 mph) |
| Compression | 9.0:1 |
| Bore x stroke | 81.0 x 96.8 mm (3.2 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 3.75-19 |
| Rear tire | 4.25-18 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 240.0 kg (529.1 pounds) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 76 Harley-Davidson XLH 1000 Sportster discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Harley-Davidson. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 1976 Harley-Davidson XLH 1000 Sportster for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Harley-Davidson bike | |
Touring capabilities for the 1976 Harley-Davidson XLH 1000 Sportster:  (48.9 out of 100)Click here for complete rating. |
|
