Harley-Davidson XLCH 1000 Sportster 19781978 Harley-Davidson XLCH 1000 Sportster specifications, pictures, reviews and rating |

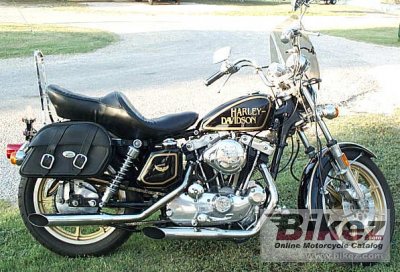

1978 Harley-Davidson XLCH 1000 Sportster. Image credits - Weldon W. Floyd.
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson XLCH 1000 Sportster |
| Year | 1978 |
| Category | Sport touring |
| Rating | 3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 997.0 ccm (60.84 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 57.0 HP (41.6 kW)) @ 6000 RPM |
| Top speed | 185.0 km/h (115.0 mph) |
| Compression | 9.0:1 |
| Bore x stroke | 81.0 x 96.8 mm (3.2 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Electronic |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telehydraulic forks |
| Rear suspension | Dual shocks swinging arm fork |
| Front tire | 3.75-19 |
| Rear tire | 4.25-18 |
| Front brakes | Single disc |
| Diameter | 285 mm (11.2 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 220.0 kg (485.0 pounds) |
| Weight incl. oil, gas, etc | 231.0 kg (509.3 pounds) |
| Power/weight ratio | 0.2591 HP/kg |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 78 Harley-Davidson XLCH 1000 Sportster discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 1978 Harley-Davidson XLCH 1000 Sportster or advertise any other MC for sale. You can list all 1978 Harley-Davidson XLCH 1000 Sportster available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this Harley-Davidson bike | |
Reliability for the 1978 Harley-Davidson XLCH 1000 Sportster:  (81.9 out of 100)Click here for complete rating. |
|
