Harley-Davidson XLCH 1000 Sportster 19761976 Harley-Davidson XLCH 1000 Sportster specifications, pictures, reviews and rating |

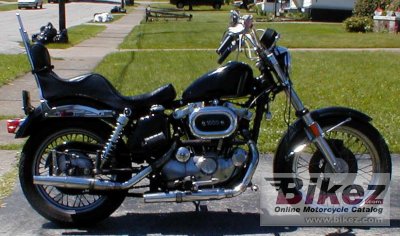

1976 Harley-Davidson XLCH 1000 Sportster. Submitted by anonymous user..
| General information | |
|---|---|
| Model name | Harley-Davidson XLCH 1000 Sportster |
| Model year | 1976 |
| Category | Sport touring |
| Rating | 3.1 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 997.0 ccm (60.84 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 57.0 HP (41.6 kW)) @ 6000 RPM |
| Top speed | 185.0 km/h (115.0 mph) |
| Compression | 9.0:1 |
| Bore x stroke | 81.0 x 96.8 mm (3.2 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 3.75-19 |
| Rear tire | 4.25-18 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 220.0 kg (485.0 pounds) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 76 Harley-Davidson XLCH 1000 Sportster discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 1976 Harley-Davidson XLCH 1000 Sportster discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Harley-Davidson bike | |
Reliability for the 1976 Harley-Davidson XLCH 1000 Sportster:  (54.9 out of 100)Click here for complete rating. |
|
