Harley-Davidson XLCH 1000 Sportster 19751975 Harley-Davidson XLCH 1000 Sportster specifications, pictures, reviews and rating |

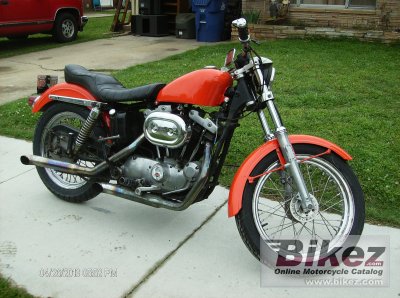

1975 Harley-Davidson XLCH 1000 Sportster. Picture submitted by anonymous user.. Submit more pictures.
| General information | |
|---|---|
| Model | Harley-Davidson XLCH 1000 Sportster |
| Model year | 1975 |
| Category | Classic |
| Rating | 3.1 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1000.0 ccm (61.02 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Ironhead Sportster engine |
| Power output | 61.0 HP (44.5 kW)) @ 6200 RPM |
| Torque | 70.5 Nm (7.2 kgf-m or 52.0 ft.lbs) @ 3800 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 81.0 x 96.8 mm (3.2 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Bendix 16P12 |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Points |
| Lubrication system | Force-Feed (Pressure) Oil pump. |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Clutch | Wet-multiple disk |
| Fuel consumption | 4.70 litres/100 km (21.3 km/l or 50.05 mpg) |
| Greenhouse gases | 109.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, double cradle. Swing arm. |
| Rake (fork angle) | 29.6° |
| Front suspension | Telescopic forks, 175mm wheel travel |
| Rear suspension | Swing arm, 100mm wheel travel |
| Front tire | 90/90-R19 |
| Rear tire | 100/90-R18 |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 203 mm (8.0 inches) |
| Physical measures and capacities | |
| Dry weight | 244.0 kg (537.9 pounds) |
| Power/weight ratio | 0.2500 HP/kg |
| Overall height | 1067 mm (42.0 inches) |
| Overall length | 2216 mm (87.3 inches) |
| Overall width | 813 mm (32.0 inches) |
| Ground clearance | 184 mm (7.3 inches) |
| Wheelbase | 1486 mm (58.5 inches) |
| Fuel capacity | 8.32 litres (2.20 US gallons) |
| Reserve fuel capacity | 0.94 litres (0.25 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
| Comments | Last year of the right side shift. |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Oil filter | HiFloFiltro Black HF178 |
| Battery | Y12N7-4A |
| Chain size | 530 |
| Chain links | 110 |
| Pulley teeth | 21/51 (front/rear) |
| Fork tube size | 35 mm (1.4 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
