General information |
|
Model
|

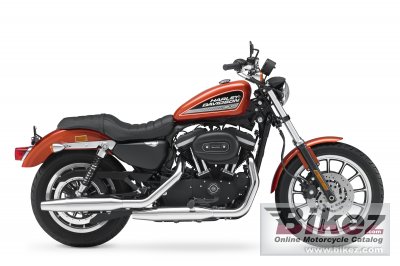

Harley-Davidson XL 883R Sportster 883R |
|
Year
|
2011 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
883.0 ccm (53.88 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Air-cooled Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. |
|
Torque
|
66.0 Nm (6.7 kgf-m or 48.7 ft.lbs) @ 3500 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate, wet |
|
Driveline
|
Belt, 28/68 ratio |
|
Fuel consumption
|
5.23 litres/100 km (19.1 km/l or 44.98 mpg) |
|
Greenhouse gases
|
121.3 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; circular |
|
Rake (fork angle)
|
29.7° |
|
Trail
|
112 mm (4.4 inches) |
|
Front suspension
|
Fork, 39 mm |
|
Front wheel travel
|
108 mm (4.3 inches) |
|
Rear suspension
|
Coil-over; preload dual-adjustable |
|
Front tire
|
100/90-19 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc. Patented, uniform expansion rotors. Dual-piston. |
|
Rear brakes
|
Single disc. Patented, uniform expansion rotors. Single-piston. |
|
Wheels
|
Black, 13-spoke cast aluminum |
|
Physical measures and capacities |
|
Dry weight
|
243.1 kg (536.0 pounds) |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2245 mm (88.4 inches) |
|
Ground clearance
|
141 mm (5.6 inches) |
|
Wheelbase
|
1542 mm (60.7 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Other specifications |
|
Instruments
|
High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warnings, optional security system |
|
Electrical
|
Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator. |
|
Light
|
55-watt low beam, 60-watt high beam |
