General information |
|
Motorcycle name
|

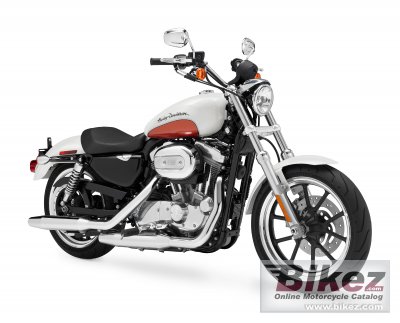

Harley-Davidson XL 883L Sportster 883 SuperLow |
|
Year of manufacture
|
2011 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 7999. Euro 8295. UK £ 6050. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
2.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
883.3 ccm (53.90 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Air-cooled Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. |
|
Torque
|
75.0 Nm (7.6 kgf-m or 55.3 ft.lbs) @ 3500 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate, wet |
|
Driveline
|
Primary Drive Chain, 57/34 ratio. Final Drive Belt, 68/29 ratio |
|
Fuel consumption
|
4.48 litres/100 km (22.3 km/l or 52.50 mpg) |
|
Greenhouse gases
|
103.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; circular sections; cast junctions. Swingarm: mild steel, rectangular tube section, stamped junctions; MIG welded. |
|
Rake (fork angle)
|
31.0° |
|
Trail
|
145 mm (5.7 inches) |
|
Front suspension
|
39 mm Showa fork |
|
Front wheel travel
|
108 mm (4.3 inches) |
|
Rear suspension
|
Coil-over; preload dual-adjustable |
|
Rear wheel travel
|
54 mm (2.1 inches) |
|
Front tire
|
120/70-ZR18 |
|
Rear tire
|
150/60-ZR17 |
|
Front brakes
|
Single disc. Patented, uniform expansion rotors. Dual-piston. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Patented, uniform expansion rotors. Single-piston. |
|
Diameter
|
269 mm (10.6 inches) |
|
Wheels
|
Black, Split 5-Spoke with Machined Rim |
|
Physical measures and capacities |
|
Dry weight
|
243.1 kg (536.0 pounds) |
|
Weight incl. oil, gas, etc
|
255.4 kg (563.0 pounds) |
|
Seat height
|
681 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall height
|
1209 mm (47.6 inches) |
|
Overall length
|
2187 mm (86.1 inches) |
|
Overall width
|
930 mm (36.6 inches) |
|
Ground clearance
|
97 mm (3.8 inches) |
|
Wheelbase
|
1506 mm (59.3 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Vivid black, Cool blue pearl, Merlot sunglo/vivid black, birch white/sedona orange. |
|
Starter
|
Electric |
|
Instruments
|
Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights. Indicator Lamps: High beam, neutral, low oil pressure, turn signal |
|
Electrical
|
Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator. |
|
Light
|
55-watt low beam, 60-watt high beam |
|
Factory warranty
|
24 months unlimited mileage (US) |
