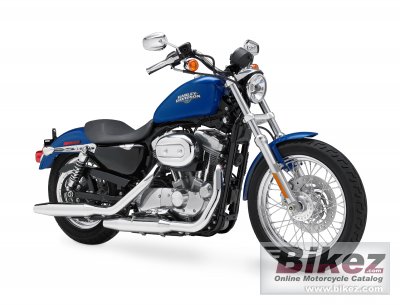

2010 Harley-Davidson XL 883L Sportster 883 Low. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| The 883 Low offers all the style and character of a much more expensive bike, at an entry-level price of Dollars 6,999. Its low seat height and comfortable ergonomics make the 883 Low an unintimidating choice for anyone who wants to jump in the saddle. |
|
General information |
|
Model
|
Harley-Davidson XL 883L Sportster 883 Low |
|
Year of manufacture
|
2010 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
883.0 ccm (53.88 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
70.0 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; circular sections; cast junctions |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
117 mm (4.6 inches) |
|
Front suspension
|
39mm |
|
Rear suspension
|
Coil-over shocks, dual adjustment |
|
Front tire
|
100/90-19 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc. Dual piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Single piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
251.0 kg (553.4 pounds) |
|
Seat height
|
670 mm (26.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2250 mm (88.6 inches) |
|
Ground clearance
|
100 mm (3.9 inches) |
|
Wheelbase
|
1515 mm (59.6 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Oil capacity
|
2.50 litres (2.64 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Scarlet Red, Brilliant Silver Pearl, Flame Blue Pearl |
|
Starter
|
Electric |
|
Comments
|
Silver powder-coated engine with polished treatment covers; Polished headlamp
visor; Chrome trim ring with black body headlamp; Black riser; Mid-mounted
rider footpegs; Stainless steel pull-back handlebars; Reduced reach solo seat;
Low-profile front forks; Low-profile rear shocks; Low-profile front fender. |
