General information |
|
Model
|

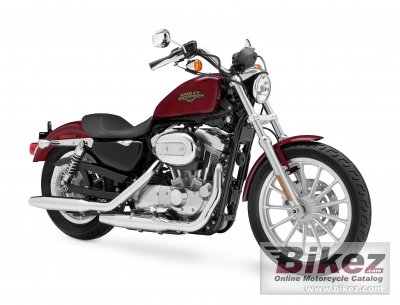

Harley-Davidson XL 883L Sportster 883 Low |
|
Year of manufacture
|
2009 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
883.0 ccm (53.88 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
70.0 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Fuel consumption
|
4.61 litres/100 km (21.7 km/l or 51.02 mpg) |
|
Greenhouse gases
|
107.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; circular sections; cast junctions |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
117 mm (4.6 inches) |
|
Front suspension
|
39mm fork |
|
Front wheel travel
|
105 mm (4.1 inches) |
|
Rear suspension
|
Coil-over, preload dual-adjustable |
|
Front tire
|
100/90-19 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc. 2-piston calipers |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Single piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
251.0 kg (553.4 pounds) |
|
Weight incl. oil, gas, etc
|
255.0 kg (562.2 pounds) |
|
Seat height
|
641 mm (25.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2250 mm (88.6 inches) |
|
Ground clearance
|
99 mm (3.9 inches) |
|
Wheelbase
|
1515 mm (59.6 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Oil capacity
|
2.60 litres (2.75 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Pewter Pearl, Dark Blue Pearl, Red Hot Sunglo |
|
Starter
|
Electric |
|
Comments
|
Silver powder-coated engine with polished treatment covers; Polished headlamp
visor; Chrome trim ring with black body headlamp; Chrome riser; Mid-mounted
rider footpegs; Stainless steel, wide, classic touring handlebars; Reduced reach
solo seat; Low-profile front forks; Low-profile rear shocks;visor; Black riser; Mid-mounted rider footpegs; Stainless steel, low-rise handlebar;
One-piece, solo Sportster® classic seat; Chrome trim ring with black body headlamp; Chrome riser; Mid-mounted rider
footpegs; Standard passenger footpegs; Stainless steel, pull-back handlebars;
One-piece, two-up Sportster® classic seat; Low-profile front forks; |
|
Modifications compared to previous model
|
New low-profile front fender. |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
K&N KN-17 |
|
Brake fluid
|
DOT 4 |
|
Spark plugs
|
NGK DCPR7E, NGK DCPR7EIX |
|
Sprockets
|
29/68 (front/rear) |
|
Tire pressure front
|
30 PSI (2.1 Bar or 210 kPa) |
|
Tire pressure rear
|
41 PSI (2.8 Bar or 280 kPa) |
|
Fork tube size
|
39 mm (1.5 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
