General information |
|
Motorcycle name
|

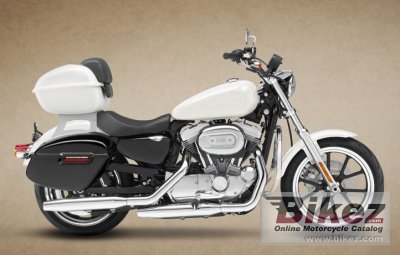

Harley-Davidson XL 883L Police |
|
Year
|
2013 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
883.3 ccm (53.90 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate, wet |
|
Driveline
|
Chain, 57/34 ratio |
|
Fuel consumption
|
4.61 litres/100 km (21.7 km/l or 51.02 mpg) |
|
Greenhouse gases
|
107.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame, circular sections, cast junctions |
|
Rake (fork angle)
|
31.1° |
|
Trail
|
145 mm (5.7 inches) |
|
Front suspension
|
39 mm Showa® |
|
Front wheel travel
|
109 mm (4.3 inches) |
|
Rear suspension
|
Coil-over, preload dual-adjustable |
|
Rear wheel travel
|
53 mm (2.1 inches) |
|
Front tire
|
120/70-ZR18 |
|
Rear tire
|
180/55-ZR18 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
259 mm (10.2 inches) |
|
Wheels
|
Black, Split 5-Spoke with Machined Rim |
|
Physical measures and capacities |
|
Dry weight
|
250.8 kg (553.0 pounds) |
|
Weight incl. oil, gas, etc
|
259.9 kg (573.0 pounds) |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2215 mm (87.2 inches) |
|
Overall width
|
846 mm (33.3 inches) |
|
Ground clearance
|
99 mm (3.9 inches) |
|
Wheelbase
|
1499 mm (59.0 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Reserve fuel capacity
|
3.41 litres (0.90 US gallons) |
|
Oil capacity
|
2.60 litres (2.75 US quarts) |
|
Other specifications |
|
Color options
|
Black, white |
|
Starter
|
Electric |
|
Electrical
|
Sealed lead acid, maintenance-free, 12V, 12-amp/hour, 200 cca battery. |
|
Light
|
Quartz halogen, 55-watt low beam, 60-watt high beam headlamp. |
|
Carrying capacity
|
Saddle bags. Top box. |
|
Factory warranty
|
2 years, unlimited milage. |
