General information |
|
Motorcycle name
|

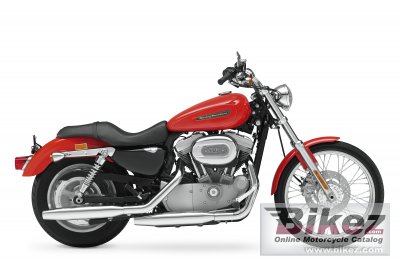

Harley-Davidson XL 883C Sportster 883 Custom |
|
Year model
|
2010 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
883.0 ccm (53.88 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
70.0 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; circular sections; cast junctions |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
Fork 39mm |
|
Front wheel travel
|
145 mm (5.7 inches) |
|
Rear suspension
|
Coil-over shocks, preload dual adjustments |
|
Rear wheel travel
|
54 mm (2.1 inches) |
|
Front tire
|
120/90-21 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc. Dual piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Single piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
255.0 kg (562.2 pounds) |
|
Seat height
|
715 mm (28.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2275 mm (89.6 inches) |
|
Ground clearance
|
120 mm (4.7 inches) |
|
Wheelbase
|
1520 mm (59.8 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Oil capacity
|
2.50 litres (2.64 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Scarlet Red, Brilliant Silver Pearl, Flame Blue Pearl |
|
Comments
|
Silver powder-coated engine; Chrome, bullet headlamp; Chrome, tall pull-back
riser; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless
steel, low-rise handlebars; One-piece, two-up Sportster® classic seat; Low-profile
front fender |
