General information |
Model name
|

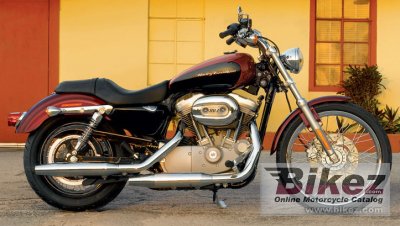

Harley-Davidson XL 883C Sportster 883 Custom |
Year
|
2006 |
Category
|
Custom / cruiser |
Price as new | US$ 7695. MSRP depends on country, taxes, accessories, etc. |
Rating
|
4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
882.7 ccm (53.86 cubic inches) |
Engine type
|
V2, four-stroke |
Torque
|
69.2 Nm (7.1 kgf-m or 51.0 ft.lbs) @ 4300 RPM |
Compression
|
8.9:1 |
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Belt (final drive) |
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
Fuel consumption
|
4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
Greenhouse gases
|
102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
Exhaust system
|
Chrome, staggered shorty duals |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
30.1° |
Trail
|
119 mm (4.7 inches) |
Front tire
|
MH90-21 |
Rear tire
|
150/80-16 |
Front brakes
|
Single disc |
Diameter
|
292 mm (11.5 inches) |
Rear brakes
|
Single disc |
Diameter
|
292 mm (11.5 inches) |
Physical measures and capacities |
Dry weight
|
253.1 kg (558.0 pounds) |
Weight incl. oil, gas, etc
|
262.6 kg (579.0 pounds) |
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
Overall length
|
2289 mm (90.1 inches) |
Ground clearance
|
112 mm (4.4 inches) |
Wheelbase
|
1547 mm (60.9 inches) |
Fuel capacity
|
17.03 litres (4.50 US gallons) |
Other specifications |
Color options
|
Vivid black, brilliant silver, black pearl, fire red pearl, glacier white pearl, rich sunglo blue, two-tone rich sunglo blue and chopper blue, two-tone chopper blue and brilliant silver, two-tone fire red pearl and vivid black |
Comments
|
4.5-gallon fuel tank. Significantly reduced clutch lever effort. Forward foot controls. One-piece, two-up seat. Chrome pullback riser.
|
