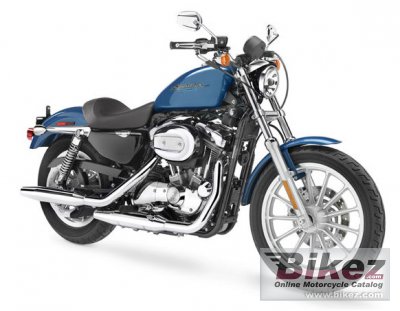

Harley-Davidson XL 883 Sportster 883 20062006 Harley-Davidson XL 883 Sportster 883 specifications, pictures, reviews and rating |
| Harley-Davidson's profilation of this bike |
| There’s no feeling on earth like getting in the saddle of a simple, fun machine and just letting go. Just ask anyone who’s had the pleasure of riding a Sportster® 883. It starts with a narrow, agile XL frame. From the solo seat, over the low-rise bar, you see miles of asphalt playground ahead. |
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson XL 883 Sportster 883 |
| Model year | 2006 |
| Category | Custom / cruiser |
| Price as new | US$ 6595. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 882.7 ccm (53.86 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Evolution engine. |
| Power output | 68.0 HP (49.6 kW)) |
| Torque | 69.2 Nm (7.1 kgf-m or 51.0 ft.lbs) @ 4300 RPM |
| Compression | 8.9:1 |
| Bore x stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Digital CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate clutch with diaphragm spring in oil bath |
| Fuel consumption | 4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
| Greenhouse gases | 102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 29.6° |
| Trail | 117 mm (4.6 inches) |
| Front suspension | 39mm Conventional cartridge forks |
| Front wheel travel | 141 mm (5.6 inches) |
| Rear suspension | Dual shocks |
| Rear wheel travel | 104 mm (4.1 inches) |
| Front tire | 100/90-19 |
| Rear tire | 150/80-16 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 251.7 kg (555.0 pounds) |
| Weight incl. oil, gas, etc | 260.4 kg (574.0 pounds) |
| Power/weight ratio | 0.2701 HP/kg |
| Overall length | 2289 mm (90.1 inches) |
| Ground clearance | 142 mm (5.6 inches) |
| Wheelbase | 1524 mm (60.0 inches) |
| Fuel capacity | 12.49 litres (3.30 US gallons) |
| Other specifications | |
| Color options | Vivid black, brilliant silver, chopper blue, fire red pearl |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Harley-Davidson XL 883 Sportster 883 discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2006 Harley-Davidson XL 883 Sportster 883 or advertise any other MC for sale. You can list all 2006 Harley-Davidson XL 883 Sportster 883 available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this Harley-Davidson bike | |
Offroad capabilities for the 2006 Harley-Davidson XL 883 Sportster 883:  (44.6 out of 100)Click here for complete rating. |
|
