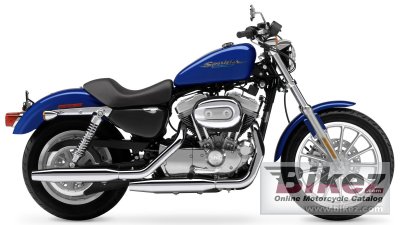

Harley-Davidson XL 883 Sportster 20042004 Harley-Davidson XL 883 Sportster specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Harley-Davidson XL 883 Sportster |
| Year | 2004 |
| Category | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 883.0 ccm (53.88 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 53.0 HP (38.7 kW)) @ 6000 RPM |
| Torque | 69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4200 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Digital CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate clutch with diaphragm spring in oil bath |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 29.6° |
| Trail | 117 mm (4.6 inches) |
| Front suspension | 39mm Conventional cartridge forks |
| Rear suspension | Dual shocks coil over, adjustable |
| Front tire | 100/90-19 |
| Rear tire | 150/80-B16 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 251.0 kg (553.4 pounds) |
| Weight incl. oil, gas, etc | 263.0 kg (579.8 pounds) |
| Power/weight ratio | 0.2110 HP/kg |
| Seat height | 693 mm (27.3 inches) If adjustable, lowest setting. |
| Overall length | 2260 mm (89.0 inches) |
| Ground clearance | 141 mm (5.6 inches) |
| Wheelbase | 1520 mm (59.8 inches) |
| Fuel capacity | 12.90 litres (3.41 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Color options | Vivid black, Brilliant silver, Sierra red, Impact blue |
| Starter | Electric |
| Comments | Silver powder-coated engine with polished covers; significantly reduced clutch lever effort; classic solo seat; mid-mount foot controls; low-rise handlebar |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 20W-50 |
| Oil filter | K & N KN-170C |
| Battery | YTX14L-BS |
| Spark plugs | NGK DCPR7E, NGK DCPR7EIX |
| Idle speed | 900 RPM |
| Belt teeth | 136 |
| Belt width | 1 1/8 in |
| Pulley teeth | 28/68 (front/rear) |
| Fork tube size | 39 mm (1.5 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
