General information |
|
Model
|

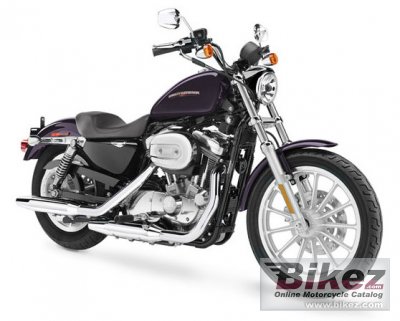

Harley-Davidson XL 883 L Sportster 883 Low |
|
Year model
|
2006 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 6995. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
882.7 ccm (53.86 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
69.2 Nm (7.1 kgf-m or 51.0 ft.lbs) @ 4300 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Fuel consumption
|
4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
|
Greenhouse gases
|
102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.6° |
|
Trail
|
117 mm (4.6 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
251.7 kg (555.0 pounds) |
|
Weight incl. oil, gas, etc
|
260.4 kg (574.0 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2289 mm (90.1 inches) |
|
Ground clearance
|
112 mm (4.4 inches) |
|
Wheelbase
|
1524 mm (60.0 inches) |
|
Fuel capacity
|
12.49 litres (3.30 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, black cherry, black pearl, chopper blue, fire red pearl, deep cobalt, glacier white pearl
|
