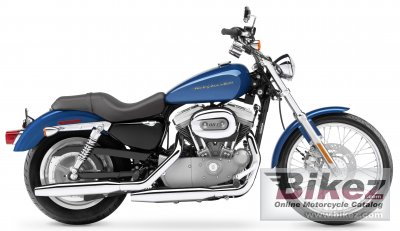

2005 Harley-Davidson XL 883 C Sportster Custom. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
|
General information |
|
Model
|
Harley-Davidson XL 883 C Sportster Custom |
|
Year of manufacture
|
2005 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
883.0 ccm (53.88 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4200 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath. |
|
Exhaust system
|
Staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
30.1° |
|
Front tire
|
MH90-21 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
255.0 kg (562.2 pounds) |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2275 mm (89.6 inches) |
|
Ground clearance
|
112 mm (4.4 inches) |
|
Wheelbase
|
1520 mm (59.8 inches) |
|
Fuel capacity
|
17.40 litres (4.60 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver pearl, sierra red pearl, black cherry pearl, glacier white pearl, rich sunglo blue, yellow pearl, two-tone rich sunglo blue and chopper blue pearl, two-tone chopper blue pearl and brilliant silver pearl, two-tone sierra red p |
