Harley-Davidson XL 1200X Sportster Forty-Eight 20102010 Harley-Davidson XL 1200X Sportster Forty-Eight specifications, pictures, reviews and rating |

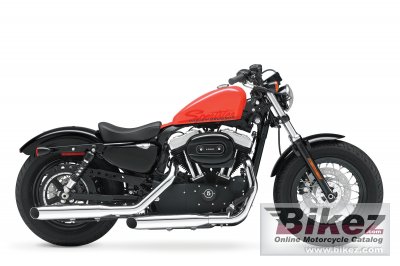

2010 Harley-Davidson XL 1200X Sportster Forty-Eight. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| Riding low with a slammed suspension and featuring the classic 2.1-gallon ´peanut´ fuel tank, the Forty-Eight backs up its bulldog appearance with the performance of its blacked out and polished rubber-mounted Evolution® 1200 cc V-Twin engine. The low solo seat, under-mounted mirrors, side mount license plate, clean rear fender and tall and fat front tire emphasize the Forty Eight´s focus on chiseled customization. |
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson XL 1200X Sportster Forty-Eight |
| Year model | 2010 |
| Type | Custom / cruiser |
| Price as new | US$ 10499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1200.0 ccm (73.22 cubic inches) |
| Type of engine | V2, four-stroke |
| Torque | 107.0 Nm (10.9 kgf-m or 78.9 ft.lbs) @ 4000 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate, wet |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome, shorty dual exhaust with slash-cut mufflers |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 29.9° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | 39mm |
| Front wheel travel | 92 mm (3.6 inches) |
| Rear suspension | Coil-over, preload dual adjustments |
| Rear wheel travel | 41 mm (1.6 inches) |
| Front tire | MT90-B16 |
| Rear tire | 150/80-B16 |
| Front brakes | Single disc. Dual piston |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Single piston |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 247.0 kg (544.5 pounds) |
| Weight incl. oil, gas, etc | 257.0 kg (566.6 pounds) |
| Seat height | 680 mm (26.8 inches) If adjustable, lowest setting. |
| Overall height | 1067 mm (42.0 inches) |
| Overall length | 2250 mm (88.6 inches) |
| Overall width | 831 mm (32.7 inches) |
| Ground clearance | 99 mm (3.9 inches) |
| Wheelbase | 1520 mm (59.8 inches) |
| Fuel capacity | 8.00 litres (2.11 US gallons) |
| Oil capacity | 2.60 litres (2.75 US quarts) |
| Other specifications | |
| Color options | Vivid Black, Brilliant Silver, Mirage Orange |
| Starter | Electric |
| Comments | Peanut fuel tank. Solo seat. Bobbed fenders. A blacked-out engine. Low handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, LED indicator lights. |
| Update specs | Report missing specs or required updates. |
