General information |
|
Model name
|

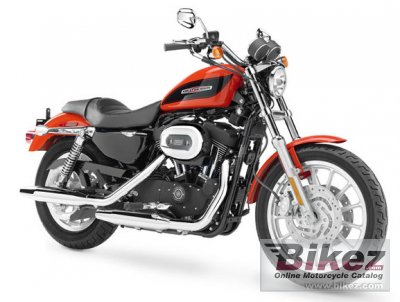

Harley-Davidson XL 1200R Sportster 1200 Roadster |
|
Year model
|
2006 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 8595. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1199.6 ccm (73.20 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
107.1 Nm (10.9 kgf-m or 79.0 ft.lbs) @ 3500 RPM |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
88.9 x 96.8 mm (3.5 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet multi-plate clutch |
|
Fuel consumption
|
4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
|
Greenhouse gases
|
113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.6° |
|
Trail
|
117 mm (4.6 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
150/80-B16 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
252.7 kg (557.0 pounds) |
|
Weight incl. oil, gas, etc
|
261.7 kg (577.0 pounds) |
|
Overall length
|
2289 mm (90.1 inches) |
|
Ground clearance
|
142 mm (5.6 inches) |
|
Wheelbase
|
1524 mm (60.0 inches) |
|
Fuel capacity
|
12.49 litres (3.30 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, black cherry, black pearl, chopper blue, fire red pearl, yellow pearl, mirage orange
|
|
Comments
|
Triple-disc brakes. Significantly reduced clutch lever effort. Black powder-coated engine and covers with highlighted cylinders and head fins. High-compression, high-flow cylinder heads. Performance cams.
|
