Harley-Davidson XL 1200N Sportster 1200 Nightster 20102010 Harley-Davidson XL 1200N Sportster 1200 Nightster specifications, pictures, reviews and rating |

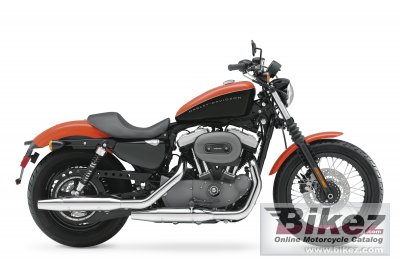

2010 Harley-Davidson XL 1200N Sportster 1200 Nightster. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| At home on back streets and alleyways, the Nightster® combines Sportster® 1200 performance with Dark Custom styling and a minimalist attitude. |
| General information | |
|---|---|
| Model name | Harley-Davidson XL 1200N Sportster 1200 Nightster |
| Year of manufacture | 2010 |
| Type | Custom / cruiser |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1202.0 ccm (73.35 cubic inches) |
| Type of engine | V2, four-stroke |
| Torque | 98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3200 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection |
| Fuel control | Overhead Valves (OHV) |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | 9-plate, wet |
| Exhaust system | Chrome, staggered exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel tubular frame; circular sections; cast junctions |
| Rake (fork angle) | 30.0° |
| Trail | 117 mm (4.6 inches) |
| Front suspension | 39mm |
| Front wheel travel | 92 mm (3.6 inches) |
| Rear suspension | Coil-over shocks, preload dual adjustment |
| Rear wheel travel | 92 mm (3.6 inches) |
| Front tire | 100/90-19 |
| Rear tire | 150/80-16 |
| Front brakes | Single disc. Dual piston |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Single piston |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 251.0 kg (553.4 pounds) |
| Seat height | 725 mm (28.5 inches) If adjustable, lowest setting. |
| Overall length | 2245 mm (88.4 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Color options | Vivid Black, Black Ice Denim, Brilliant Silver Denim/Black Denim, Scarlet Red/Vivid Black |
| Starter | Electric |
| Comments | Medium-grey engine with polished treatment covers; Black headlamp visor; Satin trim ring with black body headlamp; Black riser; Silver satin-finished fuel cap, headlamp ring and oil dipstick cover; Mid-mounted rider footpegs; Black, low-rise handlebars; One-piece, solo Sportster® classic seat; Black finish hand and foot controls; Low-profile front fender. |
