General information |
|
Model name
|

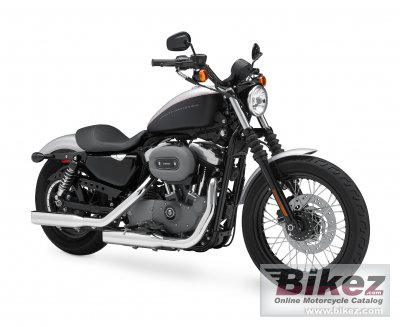

Harley-Davidson XL 1200N Sportster 1200 Nightster |
|
Year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1200.0 ccm (73.22 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3200 RPM |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
88.9 x 96.8 mm (3.5 x 3.8 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
Chrome, staggered exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; circular sections; cast junctions |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
39mm fork |
|
Front wheel travel
|
92 mm (3.6 inches) |
|
Rear suspension
|
Coil-over; preload dual-adjustable |
|
Rear wheel travel
|
41 mm (1.6 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc. Dual piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Single pistom |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
251.0 kg (553.4 pounds) |
|
Seat height
|
676 mm (26.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2245 mm (88.4 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Other specifications |
|
Color options
|
Vivid Black, Brilliant Silver Denim and Black Denim, Mirage Orange Pearl and Vivid Black. |
|
Starter
|
Electric |
|
Comments
|
Medium-grey engine with polished treatment covers; Black headlamp visor; Satin
trim ring with black body headlamp; Black riser; Silver satin-finished fuel cap,
headlamp ring and oil dipstick cover; Mid-mounted rider footpegs; Black, low-rise
handlebars; One-piece, solo Sportster® classic seat; Black finish hand and foot
controls; |
|
Modifications compared to previous model
|
New low-profile front fender. |
