General information |
|
Model
|

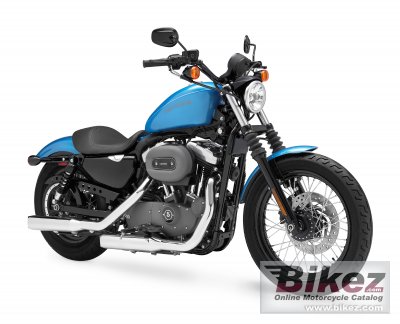

Harley-Davidson XL 1200N Nightster |
|
Year of manufacture
|
2011 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 9999. Euro 9795. UK £ 9300. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1201.3 ccm (73.30 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Air-cooled Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. |
|
Torque
|
107.0 Nm (10.9 kgf-m or 78.9 ft.lbs) @ 4000 RPM |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
88.9 x 96.8 mm (3.5 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate, wet |
|
Driveline
|
Primary Drive Chain, 57/38 ratio. Final Drive Belt, 68/29 ratio. |
|
Fuel consumption
|
4.75 litres/100 km (21.1 km/l or 49.52 mpg) |
|
Greenhouse gases
|
110.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; circular |
|
Rake (fork angle)
|
30.4° |
|
Trail
|
117 mm (4.6 inches) |
|
Front suspension
|
39 mm |
|
Front wheel travel
|
92 mm (3.6 inches) |
|
Rear suspension
|
Coil-over |
|
Rear wheel travel
|
41 mm (1.6 inches) |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc. Dual-piston. |
|
Rear brakes
|
Single disc. Single-piston. |
|
Wheels
|
Black, Laced Steel |
|
Physical measures and capacities |
|
Dry weight
|
247.2 kg (545.0 pounds) |
|
Weight incl. oil, gas, etc
|
254.9 kg (562.0 pounds) |
|
Seat height
|
653 mm (25.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1107 mm (43.6 inches) |
|
Overall length
|
2179 mm (85.8 inches) |
|
Overall width
|
925 mm (36.4 inches) |
|
Ground clearance
|
99 mm (3.9 inches) |
|
Wheelbase
|
1519 mm (59.8 inches) |
|
Fuel capacity
|
12.49 litres (3.30 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Cool Blue Pearl, Scarlet Red/Vivid Black, Psychedelic Purple/Vivid Black, Apple Green/Vivid Black |
|
Starter
|
Electric |
|
Instruments
|
Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer, |
|
Electrical
|
Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator. |
|
Light
|
55-watt low beam, 60-watt high beam |
|
Factory warranty
|
24 months, unlimited mileage. (US) |
