Harley-Davidson XL 1200L Sportster 1200 Low 20112011 Harley-Davidson XL 1200L Sportster 1200 Low specifications, pictures, reviews and rating |

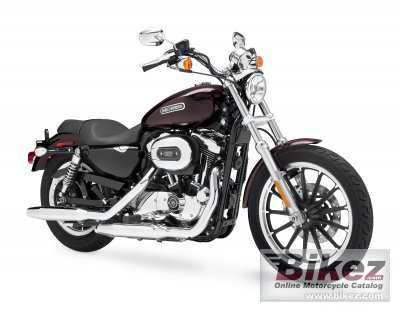

2011 Harley-Davidson XL 1200L Sportster 1200 Low. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| Today’s Sportster combines soulful styling with the flat torque delivery and distinctive sound of an American V-Twin engine. Among the more affordable Harley-Davidson models, Sportster motorcycles offer a low, comfortable seat and smooth clutch effort. |
| General information | |
|---|---|
| Model name | Harley-Davidson XL 1200L Sportster 1200 Low |
| Year model | 2011 |
| Type | Custom / cruiser |
| Price as new | US$ 9899. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1201.3 ccm (73.30 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. |
| Torque | 107.0 Nm (10.9 kgf-m or 78.9 ft.lbs) @ 4000 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Overhead Valves (OHV) |
| Lubrication system | Dry-sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate, wet |
| Driveline | Primary Drive Chain, 57/38 ratio. Final Drive Belt, 68/29 ratio. |
| Fuel consumption | 4.75 litres/100 km (21.1 km/l or 49.52 mpg) |
| Greenhouse gases | 110.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome, staggered shorty exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel, tubular frame; circular sections; cast junctions. |
| Rake (fork angle) | 30.4° |
| Trail | 145 mm (5.7 inches) |
| Front suspension | 39 mm fork |
| Front wheel travel | 105 mm (4.1 inches) |
| Rear suspension | Coil-over, preload dual-adjustable |
| Rear wheel travel | 105 mm (4.1 inches) |
| Front tire | 100/90-19 |
| Rear tire | 150/80-16 |
| Front brakes | Single disc. Patented, uniform expansion rotors. Dual-piston. |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Patented, uniform expansion rotors. Single-piston. |
| Diameter | 260 mm (10.2 inches) |
| Wheels | Black, 13-Spoke Cast Aluminum |
| Physical measures and capacities | |
| Dry weight | 252.7 kg (557.0 pounds) |
| Weight incl. oil, gas, etc | 263.5 kg (581.0 pounds) |
| Seat height | 668 mm (26.3 inches) If adjustable, lowest setting. |
| Overall height | 1189 mm (46.8 inches) |
| Overall length | 2263 mm (89.1 inches) |
| Overall width | 894 mm (35.2 inches) |
| Ground clearance | 112 mm (4.4 inches) |
| Wheelbase | 1527 mm (60.1 inches) |
| Fuel capacity | 17.03 litres (4.50 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Color options | Vivid Black, Cool Blue Pearl, Merlot Sunglo |
| Starter | Electric |
| Instruments | Handlebar-mounted electronic speedometer with odometer, time-of-day clock odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer, tim |
| Electrical | Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator. |
| Light | 55-watt low beam, 60-watt high beam |
| Factory warranty | 24 months, unlimited mileage. (US) |
