Harley-Davidson XL 1200L Sportster 1200 Low 20102010 Harley-Davidson XL 1200L Sportster 1200 Low specifications, pictures, reviews and rating |

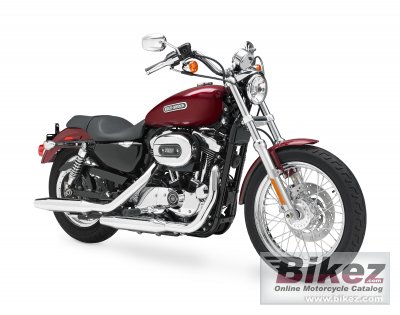

2010 Harley-Davidson XL 1200L Sportster 1200 Low. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| The Sportster® 1200 Low combines performance, agility and easy-to-handle ergonomics in a long, premium cruiser that is ready for all takers. |
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson XL 1200L Sportster 1200 Low |
| Model year | 2010 |
| Category | Custom / cruiser |
| Price as new | US$ 9899. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1202.0 ccm (73.35 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3200 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. ESPFI |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Exhaust system | Chrome, staggered exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel tubular frame; circular sections; cast junctions |
| Rake (fork angle) | 30.0° |
| Trail | 117 mm (4.6 inches) |
| Front suspension | 39mm |
| Front wheel travel | 92 mm (3.6 inches) |
| Rear suspension | Coil-over shocks, preload dual adjustment |
| Rear wheel travel | 92 mm (3.6 inches) |
| Front tire | 100/90-19 |
| Rear tire | 150/80-B16 |
| Front brakes | Single disc. Dual piston |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Single piston |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 251.0 kg (553.4 pounds) |
| Seat height | 668 mm (26.3 inches) If adjustable, lowest setting. |
| Overall length | 2263 mm (89.1 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Color options | Vivid Black, Flame Blue Pearl, Red Hot Sunglo, Scarlet Red/Vivid Black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Harley-Davidson XL 1200L Sportster 1200 Low discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
