General information |
|
Model
|

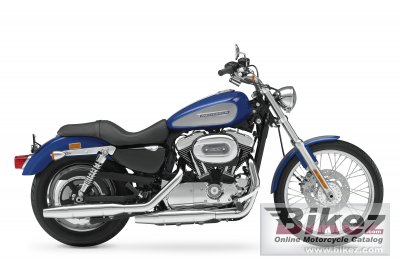

Harley-Davidson XL 1200C Sportster 1200 Custom |
|
Year
|
2010 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 9999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1202.0 ccm (73.35 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3200 RPM |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
88.9 x 96.8 mm (3.5 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; circular sections; cast junctions |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
39mm |
|
Front wheel travel
|
145 mm (5.7 inches) |
|
Rear suspension
|
Coil-over, preload dual adjustments |
|
Rear wheel travel
|
54 mm (2.1 inches) |
|
Front tire
|
MH90-21 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc. Dual piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Single piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
255.0 kg (562.2 pounds) |
|
Seat height
|
710 mm (28.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2275 mm (89.6 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1520 mm (59.8 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Oil capacity
|
2.50 litres (2.64 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Red Hot Sunglo, Scarlet Red/Vivid Black, Flame Blue Pearl/Brilliant Silver Pearl |
|
Starter
|
Electric |
|
Comments
|
Black and chrome engine with chrome treatment covers; Chrome, bullet headlamp;
Chrome, pull-back riser; Forward-mounted rider footpegs; Standard passenger footpegs;
Stainless steel, low-rise handlebars; One-piece, two-up Sportster® classic seat;
Low-profile rear shocks; Low-profile front fender. |
