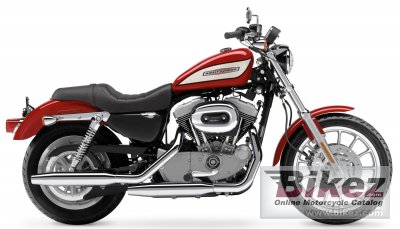

2004 Harley-Davidson XL 1200 R Sportster Roadster. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
|
General information |
|
Model name
|
Harley-Davidson XL 1200 R Sportster Roadster |
|
Year model
|
2004 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1202.0 ccm (73.35 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
93.0 Nm (9.5 kgf-m or 68.6 ft.lbs) @ 3300 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
88.8 x 96.8 mm (3.5 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.6° |
|
Trail
|
117 mm (4.6 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Double disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
251.0 kg (553.4 pounds) |
|
Seat height
|
713 mm (28.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2245 mm (88.4 inches) |
|
Overall width
|
713 mm (28.1 inches) |
|
Ground clearance
|
112 mm (4.4 inches) |
|
Wheelbase
|
1520 mm (59.8 inches) |
|
Fuel capacity
|
12.90 litres (3.41 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, luxury teal, smokey gold, real red, impact blue, lava red sunglo, racing orange |
|
Comments
|
Silver powder-coated engine and covers with black powder-coated cylinders and cylinder heads; triple-disc brakes; tachometer; high compression, high flow cylinder heads; performance cams; wide polished handlebars; chrome headlight visor |
