General information |
---|

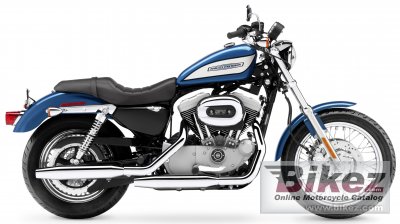

Model | Harley-Davidson XL 1200 R Sportster |
Year | 2005 |
Category | Custom / cruiser |
Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
---|
Displacement | 1202.0 ccm (73.35 cubic inches) |
Engine type | V2, four-stroke |
Torque | 93.0 Nm (9.5 kgf-m or 68.6 ft.lbs) @ 3300 RPM |
Compression | 10.0:1 |
Bore x stroke | 88.8 x 96.8 mm (3.5 x 3.8 inches) |
Valves per cylinder | 2 |
Fuel system | Carburettor |
Fuel control | Overhead Valves (OHV) |
Ignition | Digital CDI |
Lubrication system | Dry-sump |
Cooling system | Air |
Gearbox | 5-speed |
Transmission type | Belt (final drive) |
Clutch | Multi-plate clutch with diaphragm spring in oil bath. |
Chassis, suspension, brakes and wheels |
---|
Frame type | Tubular steel |
Rake (fork angle) | 30.1° |
Trail | 117 mm (4.6 inches) |
Front suspension | 39mm telescopic forks |
Rear suspension | Coil-over, dual-adjustable preload |
Front tire | 100/90-19 |
Rear tire | 150/80-16 |
Front brakes | Double disc. Two-piston calipers. |
Diameter | 292 mm (11.5 inches) |
Rear brakes | Single disc. Single-piston caliper. |
Diameter | 292 mm (11.5 inches) |
Physical measures and capacities |
---|
Dry weight | 251.0 kg (553.4 pounds) |
Weight incl. oil, gas, etc | 265.0 kg (584.2 pounds) |
Seat height | 714 mm (28.1 inches) If adjustable, lowest setting. |
Overall length | 2245 mm (88.4 inches) |
Ground clearance | 141 mm (5.6 inches) |
Wheelbase | 1520 mm (59.8 inches) |
Fuel capacity | 12.90 litres (3.41 US gallons) |
Oil capacity | 2.80 litres (2.96 US quarts) |
Other specifications |
---|
Color options | Vivid black, brilliant silver pearl, black cherry pearl, black pearl, chopper blue pearl, racing orange, lava red sunglo, yellow pearl |
Starter | Electric |
Update specs | Report missing specs or required updates. |
Maintenance and service specs * |
---|
Engine oil | SAE 20W-50 |
Oil filter | ProFilter PF-170B |
Brake fluid | DOT 5 SILIKON |
Battery | YTX14L-BS |
Spark plugs | NGK DCPR7E, NGK DCPR7EIX |
Idle speed | 950-1050 RPM |
Belt teeth | 136 |
Belt width | 1 1/8 |
Pulley teeth | 28/68 (front/rear) |
Fork tube size | 39 mm (1.5 inches) |
*) Always verify maintenance and service data with the bike owner's manual. |
