Harley-Davidson XL 1200 C Sportster Custom 20052005 Harley-Davidson XL 1200 C Sportster Custom specifications, pictures, reviews and rating |

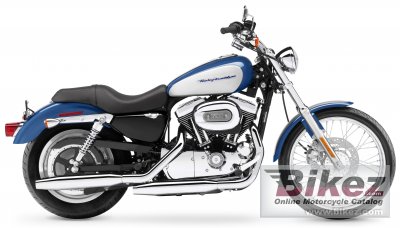

2005 Harley-Davidson XL 1200 C Sportster Custom. Picture credits - Harley-Davidson. Submit more pictures.
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson XL 1200 C Sportster Custom |
| Year model | 2005 |
| Type | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1199.0 ccm (73.16 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 58.0 HP (42.3 kW)) @ 5200 RPM |
| Torque | 69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4200 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 88.8 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Digital CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate clutch with diaphragm spring in oil bath. |
| Exhaust system | Staggered shorty duals |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 30.1° |
| Trail | 107 mm (4.2 inches) |
| Front suspension | Telescopic fork, 39 mm |
| Rear suspension | Coil-over, adjustable |
| Front tire | MH90-21 |
| Rear tire | 150/80-16 |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 255.0 kg (562.2 pounds) |
| Power/weight ratio | 0.2275 HP/kg |
| Seat height | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Overall length | 2275 mm (89.6 inches) |
| Ground clearance | 112 mm (4.4 inches) |
| Wheelbase | 1520 mm (59.8 inches) |
| Fuel capacity | 17.40 litres (4.60 US gallons) |
| Other specifications | |
| Color options | Vivid black, brilliant silver pearl, sierra red pearl, black cherry pearl, glacier white pearl, rich sunglo blue, yellow pearl, two-tone rich sunglo blue and chopper blue pearl, two-tone chopper blue pearl and brilliant silver pearl, two-tone sierra red p |
| Starter | Electric |
