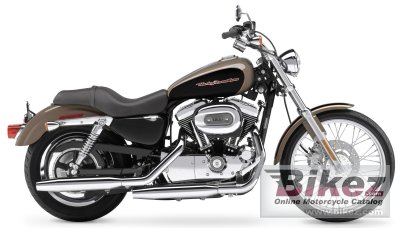

2004 Harley-Davidson XL 1200 C Sportster Custom. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
|
General information |
|
Model
|
Harley-Davidson XL 1200 C Sportster Custom |
|
Model year
|
2004 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1202.0 ccm (73.35 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
93.0 Nm (9.5 kgf-m or 68.6 ft.lbs) @ 3300 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
88.8 x 96.8 mm (3.5 x 3.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
30.1° |
|
Trail
|
119 mm (4.7 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
255.0 kg (562.2 pounds) |
|
Seat height
|
668 mm (26.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2275 mm (89.6 inches) |
|
Ground clearance
|
112 mm (4.4 inches) |
|
Wheelbase
|
1520 mm (59.8 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, sierra red, impact blue, luxury blue, glacier white pearl, lava red sunglo, two-tone impact blue and vivid black, two-tone luxury teal and brilliant silver, two-tone sierra red and brilliant silver, two-tone smokey gold and |
|
Starter
|
Electric |
|
Comments
|
Black powder-coated engine with chrome covers; 17-liter fuel tank; laced front wheel, slotted chrome disc rear wheel; forward foot controls; chrome pull-back riser; chrome bullet headlight; high compression, high flow cylinder heads; performance cams |
