Harley-Davidson XL 1200 C Sportster 1200 Custom 20022002 Harley-Davidson XL 1200 C Sportster 1200 Custom specifications, pictures, reviews and rating |

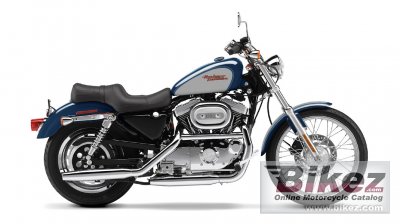

2002 Harley-Davidson XL 1200 C Sportster 1200 Custom. Picture by Harley-Davidson. Published with permission.. Submit more pictures.
| General information | |
|---|---|
| Model name | Harley-Davidson XL 1200 C Sportster 1200 Custom |
| Model year | 2002 |
| Category | Custom / cruiser |
| Rating | 3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1199.0 ccm (73.16 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 87.0 Nm (8.9 kgf-m or 64.2 ft.lbs) @ 3900 RPM |
| Bore x stroke | 88.8 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system | Carburettor |
| Cooling system | Air |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 245.0 kg (540.1 pounds) |
| Seat height | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Overall length | 2245 mm (88.4 inches) |
| Ground clearance | 159 mm (6.3 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Reserve fuel capacity | 1.90 litres (0.50 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Harley-Davidson XL 1200 C Sportster 1200 Custom discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2002 Harley-Davidson XL 1200 C Sportster 1200 Custom discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Harley-Davidson bike | |
Offroad capabilities for the 2002 Harley-Davidson XL 1200 C Sportster 1200 Custom:  (30.2 out of 100)Click here for complete rating. |
|
