| General information |
|---|

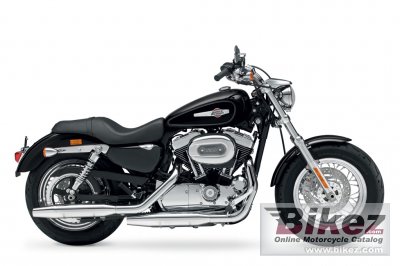

| Model: | Harley-Davidson XL1200C Sportster 1200 Custom |
| Year: | 2012 |
| Category: | Custom / cruiser |
| Price as new: | US$ 10299. Euro 10795. UK £ 8649. MSRP depends on country, taxes, accessories, etc. |
| Rating: | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 1201.3 ccm (73.30 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Air-cooled, Evolution® Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
| Torque: | 107.1 Nm (10.9 kgf-m or 79.0 ft.lbs) @ 4000 RPM |
| Compression: | 9.7:1 |
| Bore x stroke: | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication system: | Dry-sump |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Driveline: | Chain primary drive, 57/38 ratio |
| Fuel consumption: | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Greenhouse gases: | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Chrome, staggered exhaust with slash-cut mufflers |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mild steel, tubular frame; circular sections; cast junctions |
| Rake (fork angle): | 29.9° |
| Trail: | 107 mm (4.2 inches) |
| Front suspension: | 39 mm |
| Front wheel travel: | 105 mm (4.1 inches) |
| Rear suspension: | Mild steel, rectangular tube section, stamped junctions, MIG welded swing-arm. Coil-over; preload dual-adjustable shocks. |
| Rear wheel travel: | 54 mm (2.1 inches) |
| Front tyre: | 130/90-B16 |
| Rear tyre: | 150/80-B16 |
| Front brakes: | Single disc. Dual-piston |
| Diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc. Single-piston |
| Diameter: | 260 mm (10.2 inches) |
| Wheels: | Chrome, 5-Spoke Cast Aluminum |
| Seat: | Two-up seat is standard with 26.5 inch laden seat height |
| Physical measures and capacities |
|---|
| Dry weight: | 250.8 kg (553.0 pounds) |
| Weight incl. oil, gas, etc: | 264.0 kg (582.0 pounds) |
| Seat height: | 676 mm (26.6 inches) If adjustable, lowest setting. |
| Overall length: | 2220 mm (87.4 inches) |
| Ground clearance: | 112 mm (4.4 inches) |
| Wheelbase: | 1521 mm (59.9 inches) |
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Oil capacity: | 2.60 litres (0.17 quarts) |
| Other specifications |
|---|
| Color options: | Vivid Black, Big Blue Pearl, Brilliant Silver Pearl, Two-Tone Ember Red Sunglo/Merlot Sunglo |
| Starter: | Electric |
| Instruments: | Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights |
| Electrical: | Sealed lead acid battery, maintenance-free, 12V, 12 amp/hour, 200 cca. |
| Factory warranty: | 24 months, unlimited mileage. |
