General information |
|
Motorcycle name
|

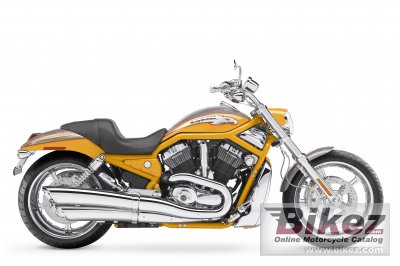

Harley-Davidson VRSCSE Screamin Eagle V-Rod |
|
Year of manufacture
|
2006 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 26495. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1179.9 ccm (72.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
123.0 HP (89.8 kW)) |
|
Torque
|
116.6 Nm (11.9 kgf-m or 86.0 ft.lbs) @ 7000 RPM |
|
Compression
|
11.3:1 |
|
Bore x stroke
|
104.9 x 72.1 mm (4.1 x 2.8 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Sequential, single fire non waste spark, coil on plug |
|
Lubrication system
|
Gerotor, wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Nine plate wet pressure fed with integral compensation |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails. |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
117 mm (4.6 inches) |
|
Front suspension
|
Huge 49mm telescopic forks |
|
Front wheel travel
|
100 mm (3.9 inches) |
|
Rear suspension
|
Dual coil over adjustable shock |
|
Rear wheel travel
|
70 mm (2.8 inches) |
|
Front tire
|
120/70-ZR19 |
|
Rear tire
|
240/40-R18 |
|
Front brakes
|
Double disc. 4-piston caliper |
|
Diameter
|
250 mm (9.8 inches) |
|
Rear brakes
|
Single disc. 4-piston caliper |
|
Diameter
|
250 mm (9.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
298.0 kg (657.0 pounds) |
|
Weight incl. oil, gas, etc
|
308.0 kg (679.0 pounds) |
|
Power/weight ratio
|
0.4127 HP/kg |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2362 mm (93.0 inches) |
|
Ground clearance
|
127 mm (5.0 inches) |
|
Wheelbase
|
1699 mm (66.9 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
Yellow, red |
|
Starter
|
Electric |
|
Electrical
|
Sealed, maintenance-free, 12-volt, 200 cca battery. |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Oil filter
|
Fram - PH6100 |
|
Battery
|
YTX14-BS |
|
Spark plugs
|
DCPR8E |
|
Belt width
|
1 1/8 in |
|
Pulley teeth
|
28/72 (front/rear) |
|
Fork tube size
|
49 mm (1.9 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
