General information |
|
Motorcycle name
|

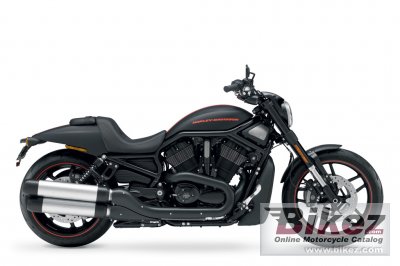

Harley-Davidson VRSCDX Night Rod Special |
|
Year
|
2012 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 15299. Euro 16295. UK £ 13499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1250.1 ccm (76.28 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Liquid-cooled, Revolution®, 60° V-Twin. Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment. |
|
Torque
|
115.3 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 7000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
105.0 x 72.0 mm (4.1 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet, Assist and Slip |
|
Driveline
|
Primary Drive Gear, 117/64 ratio Final Drive Belt, 72/28 ratio. High-performance carbon-fiber drive belt. |
|
Fuel consumption
|
6.36 litres/100 km (15.7 km/l or 36.98 mpg) |
|
Greenhouse gases
|
147.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Straight-shot exhaust with brushed finish dual mufflers; black end caps and exhaust shield |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
130 mm (5.1 inches) |
|
Front suspension
|
43 mm Inverted fork |
|
Front wheel travel
|
102 mm (4.0 inches) |
|
Rear suspension
|
Preload adjustable shocks. Polished, one-piece cast aluminum with black powder-coat finish swingarm. |
|
Rear wheel travel
|
74 mm (2.9 inches) |
|
Front tire
|
120/70-ZR19 |
|
Rear tire
|
240/40-R18 |
|
Front brakes
|
Single disc. 4-piston calipers. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston caliper. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Black, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe |
|
Physical measures and capacities |
|
Dry weight
|
288.9 kg (637.0 pounds) |
|
Weight incl. oil, gas, etc
|
303.9 kg (670.0 pounds) |
|
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2365 mm (93.1 inches) |
|
Ground clearance
|
122 mm (4.8 inches) |
|
Wheelbase
|
1702 mm (67.0 inches) |
|
Fuel capacity
|
18.93 litres (5.00 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Black Denim, Sedona Orange |
|
Starter
|
Electric |
|
Instruments
|
Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer |
|
Electrical
|
Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca |
|
Light
|
55-watt low beam, 60-watt high beam headlight |
|
Factory warranty
|
2 years, unlimited mileage. |
