General information |
|
Model
|

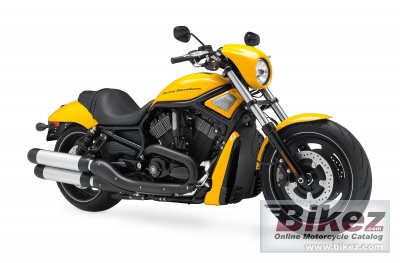

Harley-Davidson VRSCDX Night Rod Special |
|
Model year
|
2011 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 14699. Euro 17490. UK £ 13140. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1250.0 ccm (76.28 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Liquid-cooled, Revolution®, 60° V-Twin. Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment. |
|
Torque
|
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 7000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
105.0 x 72.0 mm (4.1 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Lubrication system
|
Wet-sump, integrated with powertrain crankcase |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet, Assist and Slip |
|
Driveline
|
Primary Drive: Gear, 117/64 ratio. Final Drive: Belt, 72/28 ratio |
|
Exhaust system
|
Brushed, straight-shot exhaust with dual mufflers, |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
114 mm (4.5 inches) |
|
Front suspension
|
Wide, 49mm custom fork |
|
Front wheel travel
|
102 mm (4.0 inches) |
|
Rear suspension
|
Preload adjustable |
|
Rear wheel travel
|
102 mm (4.0 inches) |
|
Front tire
|
120/70-ZR19 |
|
Rear tire
|
240/40-R18 |
|
Front brakes
|
Double disc. 4-piston. Patented, one-piece floating rotor. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston. Uniform expansion rotor. |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Black, Slotted Disc Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
293.0 kg (646.0 pounds) |
|
Seat height
|
690 mm (27.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2460 mm (96.9 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1715 mm (67.5 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Oil capacity
|
4.40 litres (4.65 US quarts) |
|
Other specifications |
|
Color options
|
Brilliant Silver Pearl/Black Racing Stripe with Ghost Flames, Chrome Yellow/Black Racing Stripe with Ghost Flames, Sedona Orange/Black Racing Stripe with Ghost Flames,
Black Denim/Sedona Orange Racing Stripe |
|
Starter
|
Electric |
|
Instruments
|
Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer |
|
Electrical
|
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca battery. Charging: Three-Phase, 38-amp system |
|
Light
|
55-watt low beam, 60-watt high beam |
|
Factory warranty
|
24 months |
