Harley-Davidson VRSCDX Night Rod Special 20102010 Harley-Davidson VRSCDX Night Rod Special specifications, pictures, reviews and rating |

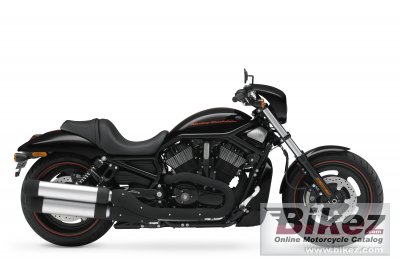

2010 Harley-Davidson VRSCDX Night Rod Special. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| The Night Rod® Special offers a raw, street-tough attitude, with an all-black Revolution V-Twin engine and blacked-out fork legs, swing arm and other components. The speed-screen visor and racing stripe come straight from the drag strip. |
| General information | |
|---|---|
| Model | Harley-Davidson VRSCDX Night Rod Special |
| Year | 2010 |
| Category | Custom / cruiser |
| Price as new | US$ 16999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1250.0 ccm (76.28 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 111.0 Nm (11.3 kgf-m or 81.9 ft.lbs) @ 7200 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 105.0 x 72.0 mm (4.1 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | 9-plate, wet, Assist and Slip |
| Exhaust system | Brushed, straight-shot exhaust with dual mufflers, |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded |
| Rake (fork angle) | 34.0° |
| Trail | 114 mm (4.5 inches) |
| Front suspension | Wide, 49mm custom fork |
| Front wheel travel | 102 mm (4.0 inches) |
| Rear suspension | Preload adjustable |
| Rear wheel travel | 102 mm (4.0 inches) |
| Front tire | 120/70-ZR19 |
| Rear tire | 240/40-R18 |
| Front brakes | Double disc. 4-piston |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. 4-piston |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Dry weight | 292.0 kg (643.7 pounds) |
| Seat height | 690 mm (27.2 inches) If adjustable, lowest setting. |
| Overall length | 2460 mm (96.9 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1715 mm (67.5 inches) |
| Fuel capacity | 18.90 litres (4.99 US gallons) |
| Oil capacity | 4.40 litres (4.65 US quarts) |
| Other specifications | |
| Color options | Black Denim with Brilliant Silver Denim Racing Stripe, Vivid Black with Brilliant |
| Starter | Electric |
| Comments | Black powder-coated engine with black treatment covers; Sport front fender with painted brace supports; Low-profile rear fender; 240mm wide rear tyre; Colour-matched headlamp nacelle; Slipper clutch; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, low-rise handlebars; Two-piece, two-up textured vinyl seat; 4-piston front and rear caliper Brembo® brakes with dual front rotor; Wide, 49mm custom forks; ABS as standard |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Harley-Davidson VRSCDX Night Rod Special discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Harley-Davidson. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2010 Harley-Davidson VRSCDX Night Rod Special for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Harley-Davidson bike | |
Reliability for the 2010 Harley-Davidson VRSCDX Night Rod Special:  (85.5 out of 100)Click here for complete rating. |
|
